GREITOJI JUNGTIS 1/2"IŠOR.L71MM CEJN

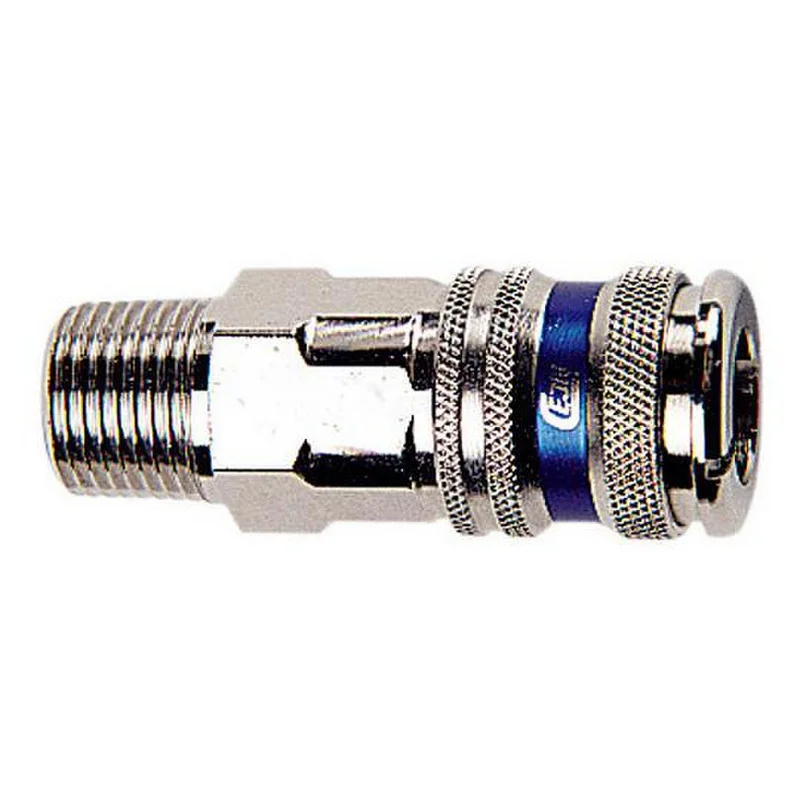

Quick-action connector with male thread

Cejn 408

A sturdy connector with low connection power.

• The connectors' flow values are very high and they are highly resistant to vibration.
• Quick-action connectors and connector nipples with male threads are equipped with thread sealant compound upon delivery.
• Can also be used for vacuum.

Flow port: 9.5 mm

Flow*: 3450 l/min

Max. operating pressure: 16 bar (232 PSI)

Min. explosion pressure: 140 bar (2030 PSI)

Temperature range: -20°C to +100°C

Body material: zinc-coated steel/brass

Coupling nipple material: hardened and zinc-coated steel

Coupling force: 160.0 N

Compatibility with TEMA 1800, Rectus 32

*Measured with 0.5 bar pressure loss.
